Loadcells & Loadcell Mounts
Unbeatable range and quality
At EMC Weighing, our extensive expertise in weighing applications allows us to offer one of the most comprehensive selections of load cells on the market, with all models available in IECEx/ATEX certification and certified ratings.
Only the highest quality loadcells, from the world’s leading manufacturers Scaime, ThamesSide, and Vishay Sensortronics, Revere, Celtron and Tedea-Huntleigh, are fitted in EMC Loadcell Mounts to ensure the best in reliability and accuracy.
Please note: We are an official supplier of Scaime products in New Zealand. If you are outside of New Zealand, please contact Scaime directly. Visit scaime.com
The cornerstone of any weighing system, a load cell is an electrical instrument designed to convert mechanical force into an electrical output signal.
To maximise the benefits of a load cell, a deep understanding of its technology, construction, and operation is essential. Additionally, selecting the appropriate load cell for each application is crucial. With our experience, EMC Weighing can guide you through load cell selection, ensuring the right capacity, accuracy class, and environmental protection for your needs.
Our comprehensive range includes aluminium, alloy steel, and stainless steel loadcells covering a wide measurement range up to 1,000 tonnes. Our load cells conform to international regulations and standards, guaranteeing optimal safety and performance for your applications.
Key Features:
- Capacities ranging from 200g to 1000 tonnes
- Accuracy from±0.017%
- Models including Single Point, Bending Beam, Shear Beam, Double-ended Shear Beam, Tension & Compression
- Available in Aluminum, Tool Steel, and Stainless Steel variants
- Ingress protection levels from IP65 to IP69K
- Many models certified for Hazardous Areas (IECEx/ATEX)
- OIML Certification
Choose EMC Weighing for unparalleled loadcell solutions tailored to your specific requirements, backed by our expertise and commitment to quality.
Our Range

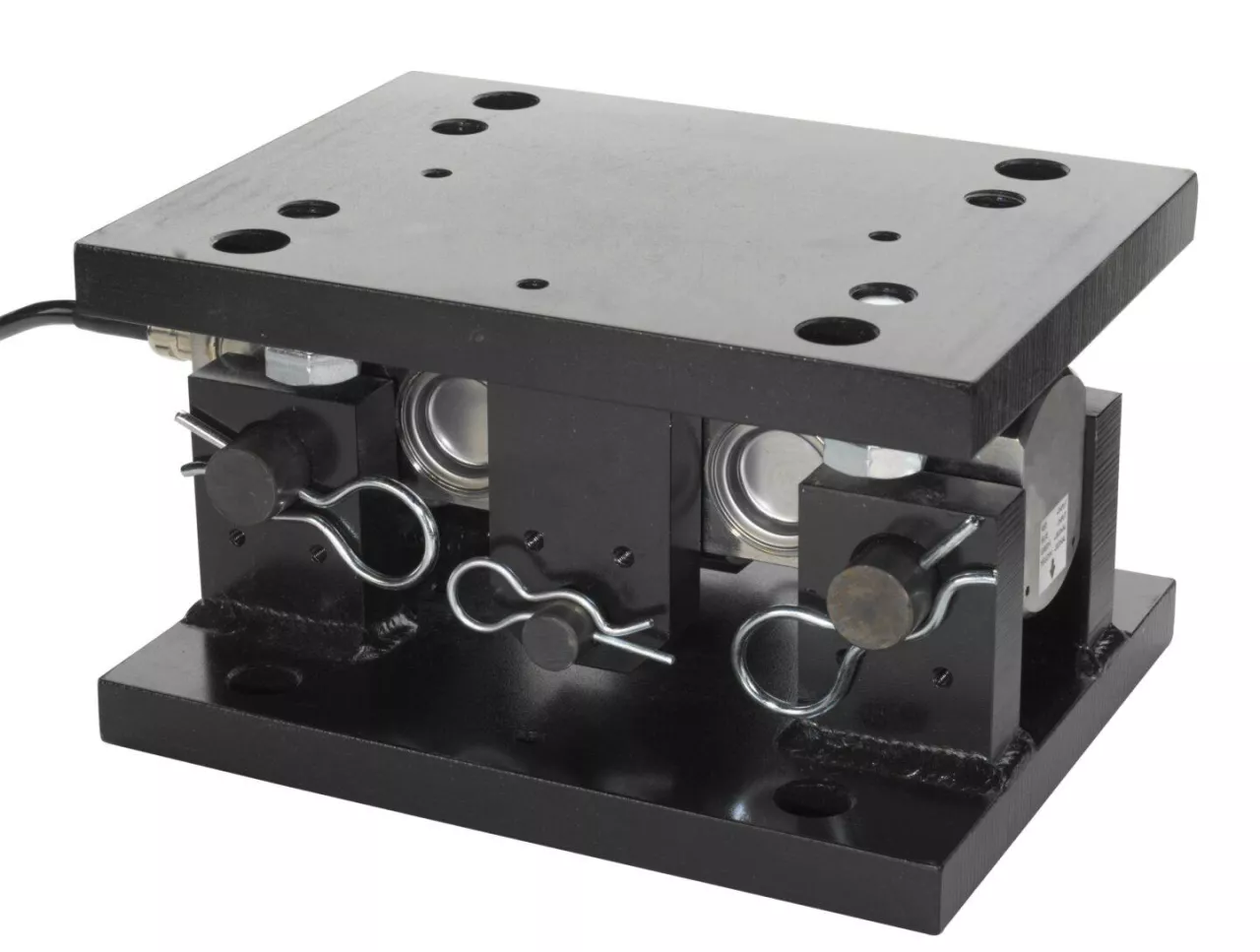

VC3500 Mount
The VC3500 double ended shear beam load cell, with its robust mounting accessory, is designed particularly for large silos and tanks and it incorporates a high anti-lift-off strength.
- Capacities up tp 75 tonne
- Stainless steel double shear beam load sensor
- Integral lift off prevention, resistant to off-axis loading and allows vessel expansion/contraction

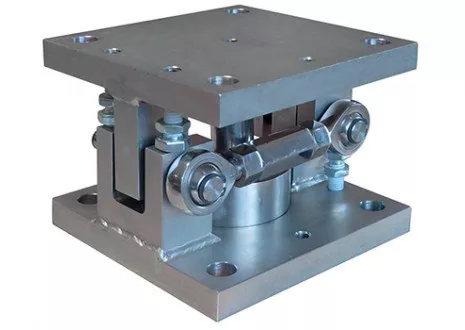

Silosafe-r Mounts
Add the weighing function to tanks or silos in complete safety.
- For 250kg to 100 tonnes
- Zinc plated or stainless steel construction
- Anti-lift system and bidirectional stops ensuring optimal safety
- For dynamic applications (mixers, moving structures), up to two optional stabilisers can be added to maintain the structure in place
- Seismically rated, with options for mounting kits to be ECmarked to EN 1090-2, EXC2, ensuring it be used as an element of supporting structure of a building
- Option for Epoxy TH220 plates, ensuring thermal insulation between monitoring kit and structure

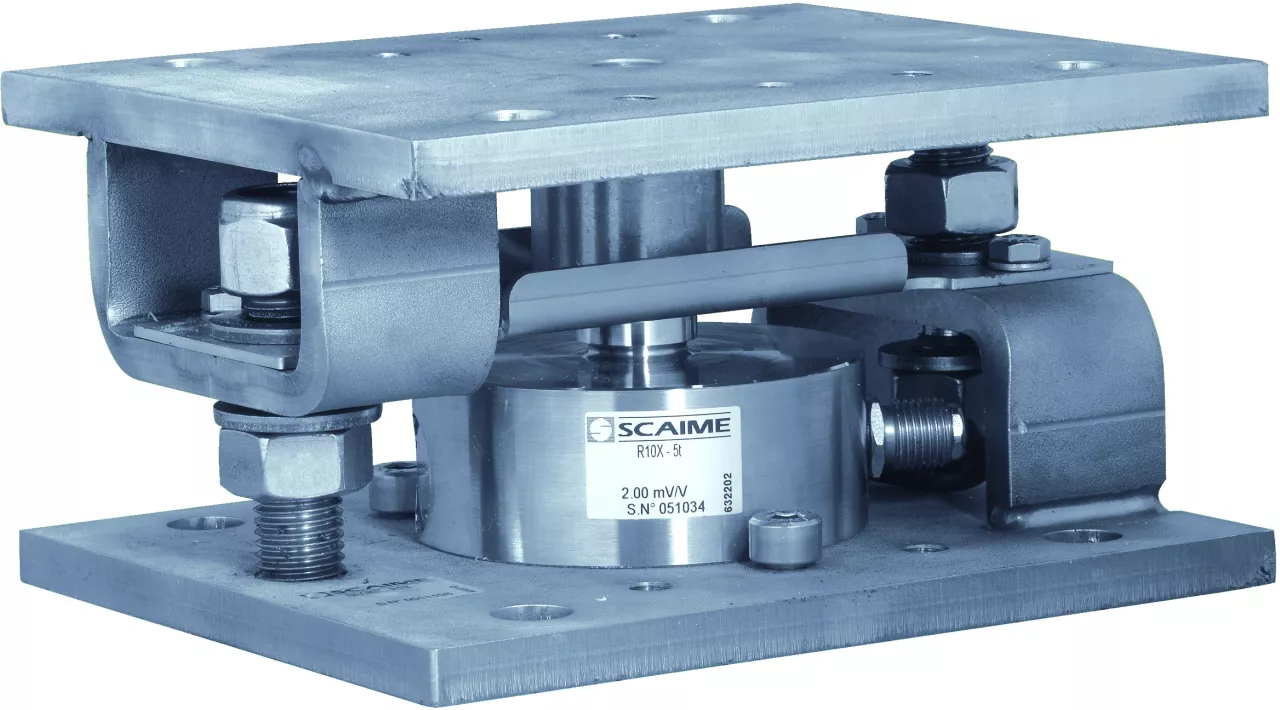

Silokit Mounts
The Silokit-R is an economical alternative to the DSM Mount with lower accuracy. Suitable for large vessels with no movement or agitation.
- Capacities from 5 tonne to 30 tonne
- Stainless Steel construction
- Lift-off prevention and resistant to lateral forces
- Stainless Steel Compression loadcells, 2mV/V output, accuracy: ±0.05%

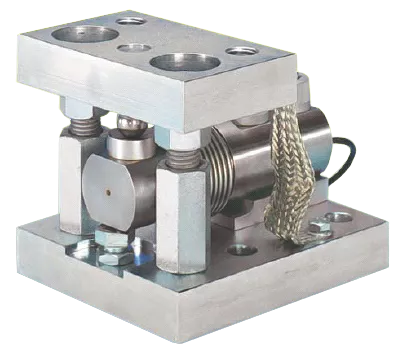

Stabiflex Mounts
Fully stainless steel and zinc plated steel Stabiflex-F Mounts are ideal for vessel weighing in standard, hygienic, Ex rated, wash down and harsh environments.
- Capacities from 100kg to 5 tonne
- Provides excellent vessel stability
- Integrated ball and cup decoupling system enables quick loadcell replacement
- Stainless Steel Bending Beam loadcells, 2mV/V output, accuracy: ±0.017%

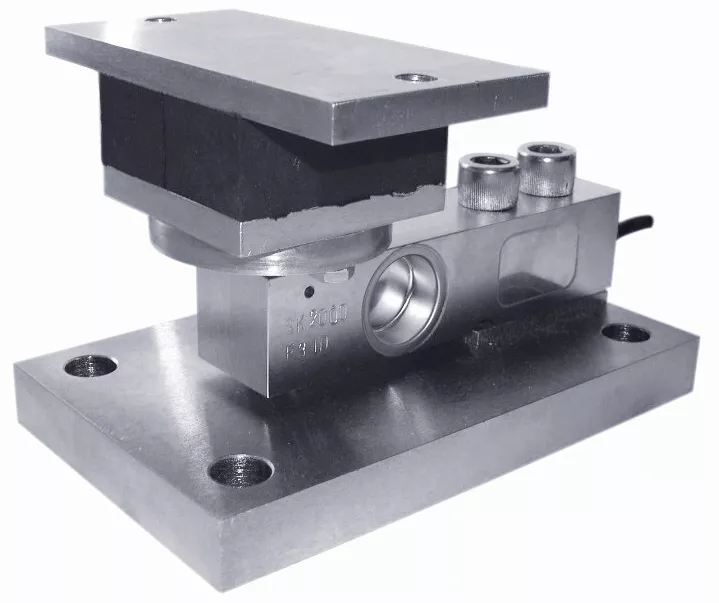

Isoflex Mounts
Isoflex Mounts are designed for medium sized Tanks and Hoppers in general industrial situations where no movement or agitation occurs.
- Capacities from 250kg to 2 tonne
- Zinc plated steel plates with rubber pad for vibration and shock absorbtion
- Stainless Steel Shear Beam loadcells, 3mV/V output, accuracy: ±0.017%

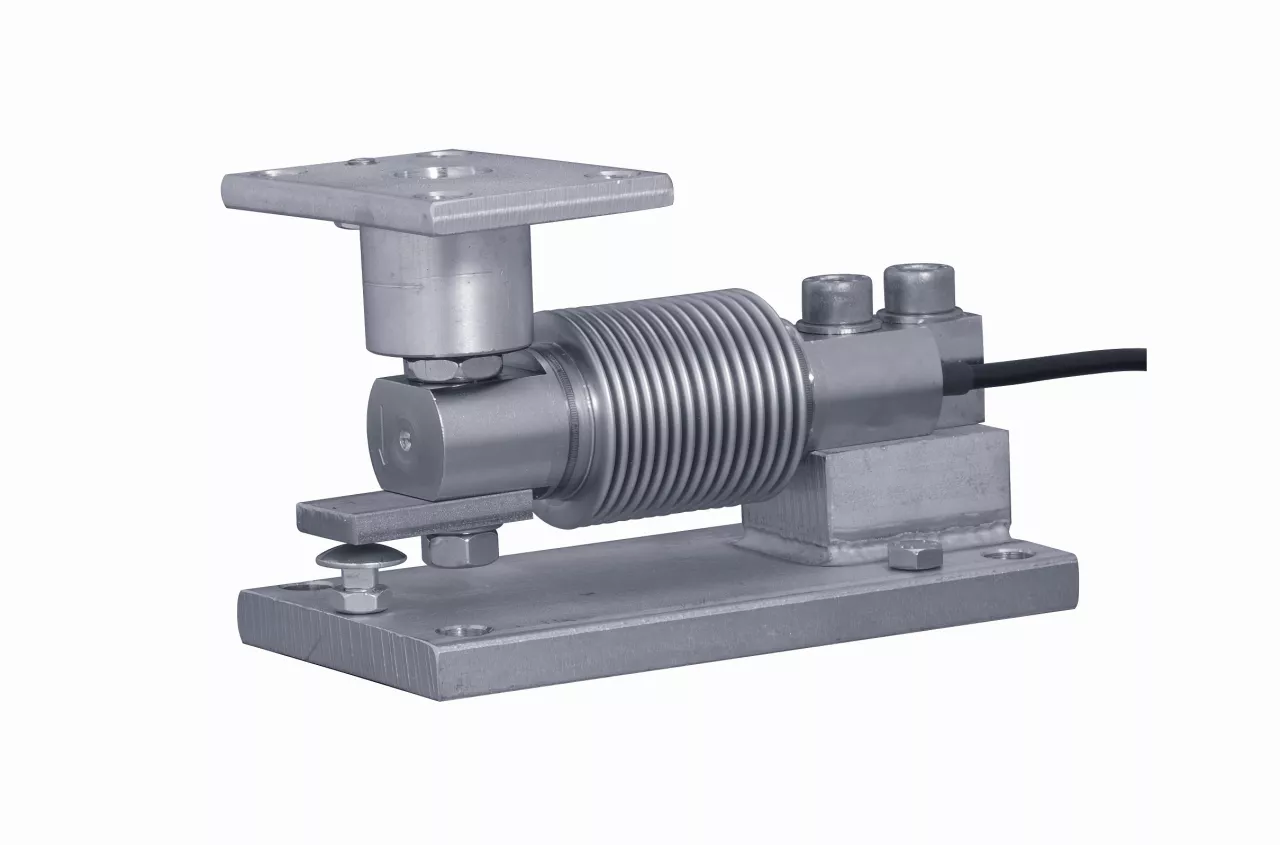

Rubberkit Mounts
Designed for small Vessels the compact Rubberkit-FX provides easy installation and accurate weighing.
- Capacities from 20kg to 200kg
- Stainless steel upper and lower plates
- Upper plate includes rubber support to compensate for any misalignment
- Stainless Steel Bending Beam loadcells, 2mV/V output, accuracy: ±0.017%

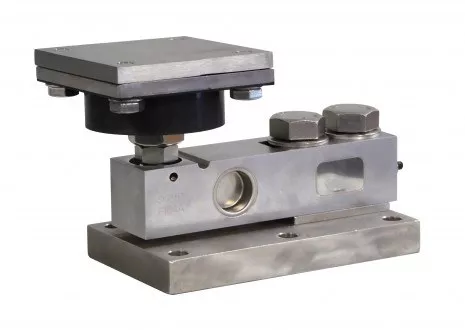

Quickfit-S Mounts
A simple and sustainable solution to transform your industrial equipment into a weighing scale.
- Suitable for weighing tanks, conveyors or machines
- Made of stainless steel
- Damper to absorb side forces
- Ball joint decoupling, height adjustable
- Allow misalignment or inclination defaults
- Allow expansion of the structure
- Damper and base sold separately
- Optional welding upper plate
- Safety restraint devices not provided
Browse our Resource Library for more information on loadcells including brochures, manuals and technical information.
