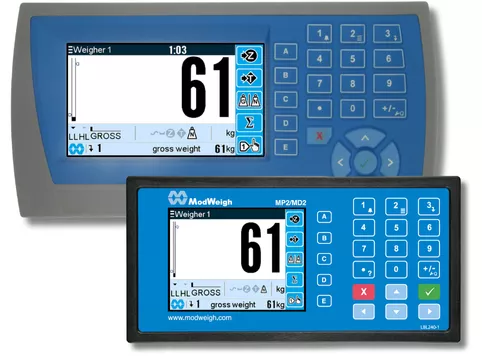

• MK61A Weigher System for tanks and silos
• MW64A Batch Weigher System for loadcell based weighing systems

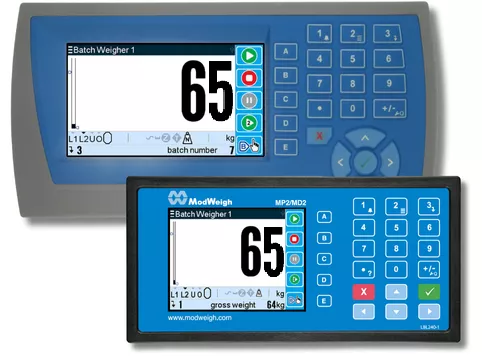

• MW65A Process Weigher System for loadcell based weighing systems
• MK93A Weight Change System for loss-in-weight applications

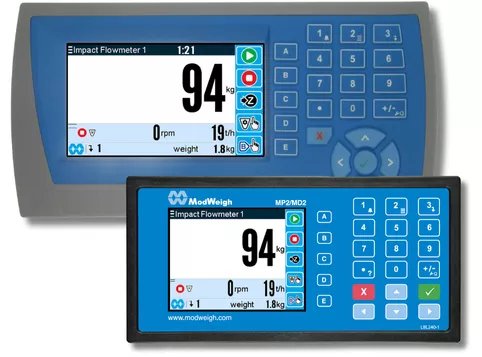

• MW94A Impact Flowmeter System for flowrate of free flowing solids material

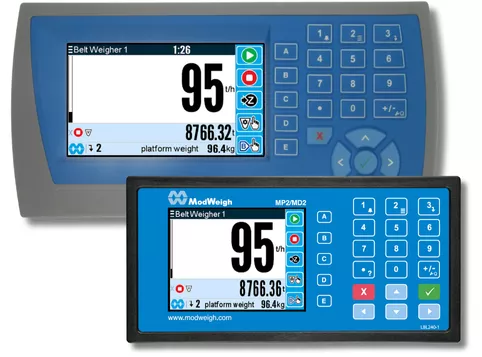

• MK95A Belt Weigher System for measuring and totalising

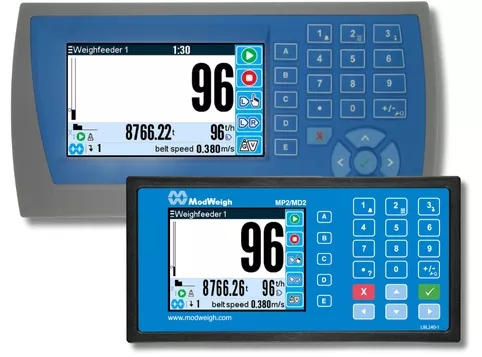

• MK96A Weigh Feeder System for weigh feeder control

With a range of display options, including built-in or remote transmitters, as well as built-in or remote I/O, and the choice of panel or DIN rail mounting, ModWeigh offers unparalleled versatility. This flexibility allows users to tailor the system precisely to their application requirements, ensuring optimal performance and functionality.

ModWeigh Modular System

This modular system provides flexibility and scalability, allowing users to configure their weighing solution according to their specific requirements, with options for both standalone components and integrated solutions.

The ModWeigh modular system includes:

• MT1 Transmitter
  • 4 Load cell terminals
  • 1 Digital Input/2 Digital Outputs
• MR1 Input/Output Module
  • 8 Digital Inputs/9 Digital Outputs
  • 2 Analogue Outputs (4-20mA)
  • 1 Analogue Input
• MD1 Large Display

Alternatively, an MP1 Processor (combined Display & Transmitter) can be used as an alternative to the MT1 & MD1.

ModWeigh All-in-One System

This comprehensive all-in-one solution provides users with a compact and integrated system for their weighing needs. With the option to expand functionality using the MO3 Expansion Module, users can customise the system to suit their specific requirements, making it an ideal solution for a wide range of applications.

The ModWeigh all-in-one system includes:

• MP2 Controller
  • 1 Digital Input/2 Digital Outputs
  • 1 Analogue output (4 – 20mA)
• Optional MO3 Expansion Module for additional inputs/outputs
  • 4 Digital Inputs/4 Digital Outputs
  • 1 Analogue Input/1 Analogue Output

These features combine to deliver unmatched accuracy, reliability, and flexibility, making ModWeigh processors ideal for various dynamic and static weighing applications. Whether you're monitoring material flow on a conveyor belt or managing precise batching operations, ModWeigh offers advanced solutions with easy integration into your existing systems.

• Modular & Flexible Design
  Offers a range of hardware options with varying display sizes and I/O configurations, enabling flexible integration.
• 4-20mA Output
  Enables precise control and integration with external systems.
• Modbus Communications
  Standard Modbus protocol (RS232, RS485) for seamless system integration, with optional Anybus module access for Ethernet/IP, Profinet, CANOpen, and Profibus DPV1.
• USB Host & Device
  Memory stick & PC support for storing calibration, settings, and logging.
• Field Software Upgrades
  Easy, no-cost in-situ software upgrades.
• Macro Language
  Customize printouts, perform arithmetic, and logic calculations with digital inputs/outputs.
• Automatic Zeroing
  Ensures accurate measurements by compensating for drift.
• Batch Control
  Accurate control of batching and material handling processes.
• Graphics LCD Display
  User-friendly interface for visualising data and settings.
• Time & Date Clock
  For generating accurate timestamps on printouts.
• Alarm Function
  Alerts operators of critical events or deviations.
• Programmable Digital Inputs/Outputs
  Flexible integration for system control.
• Flexible Power Supply
  Operates with a 12-24Vdc power supply.
• Setpoint Communication Across Systems
  Enables easy communication across multiple connected ModWeigh systems.
• Volumetric Mode Operation
  Ensures continuous operation in case of load cell or tacho failure.
• Inclination Correction (Manual/Automatic)
  Corrects scale inclination manually or automatically with an angle transducer.
• Load Cell Fault Finding (MT1)
  Assists in identifying faults in load cells for quick troubleshooting.

These advantages are what set ModWeigh apart in terms of flexibility, serviceability, and advanced functionality, ensuring that your system is tailored to your specific needs while remaining cost-effective and future-proof. Whether you require easy upgrades, seamless communication, or the flexibility to adjust hardware configurations, ModWeigh delivers the performance and reliability your operations demand.

• Modular Design
  Interoperable hardware components with a common software base ensure seamless integration and operation.
• Cost Efficiency for OEMs
  Utilises the same hardware across multiple products, minimizing inventory and costs.
• Increased Serviceability
  Terminals protected against wiring errors and easily replaceable P-Modules retain calibration and settings.
• Customisable Setup
  Easy to configure with Modtool software for basic setup and calibration.
• Data Concentration
  MD1 data concentrator consolidates data from connected systems for centralized access.
• Reliable Performance
  P-Module transferability and in-situ upgrades ensure ongoing reliability and ease of maintenance.
• Scalable Configurations
  From three-part options (MD1 + MT1 + MR1) to all-in-one (MP2) systems, adaptable to diverse needs.
• User-Focused Interface
  Configurable keys and clear setup instructions for easier operation.
• Accurate Control
  Features such as PI control with feedforward ensure fast response and precise material handling.
• Error-Free Service
  Address Select Terminal (ADS) prevents bus address conflicts during hardware swaps, improving serviceability and reducing downtime.
